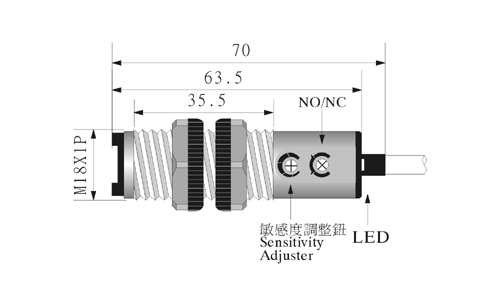

產品型號：L系列 原產地：臺灣 品牌：TPC 產品說明： 1.檢出方式：擴散反射／鏡片反射／對照型 2.感應距離：擴散反射（10 or 40 cm）／鏡片反射（3 m）／對照 型（10 or 20 m） 3.輸出方式：NPN NO/NC，PNP NO/NC 4.工作電壓：DC10-30V 5.電線材質：PVC耐油電線 6.保護等級：IP66 7.防水性佳 8.NO/NC可切換 擴散反射:
型號 | 工作電壓 | 感應距離 | 應差距離 | 輸出方式 | 消耗電流 | 負載電流 | 殘留電壓 | 反應頻率 | 重量 |
Type | Power Supply | Sensing Distance | Differential Travel | Output | Current Consumption | Load Current | Voltage Drop | Response Frequency | Wieght |
LDD-10N | 10-30V DC | 10 cm | ±15% | NPN NO/NC | ﹤30mA | 250mA Max. | 1V Max. | 1.5ms Max. | Approx:91g |
LDD-10P | 10-30V DC | 10 cm | ±15% | PNP NO/NC | ﹤30mA | 250mA Max. | 1V Max. | 1.5ms Max. | |
LDD-40N | 10-30V DC | 40 cm | ±15% | NPN NO/NC | ﹤30mA | 250mA Max. | 1V Max. | 1.5ms Max. | |
LDD-40P | 10-30V DC | 40 cm | ±15% | PNP NO/NC | ﹤30mA | 250mA Max. | 1V Max. | 1.5ms Max. |
鏡片反射:
型號 | 工作電壓 | 感應距離 | 應差距離 | 輸出方式 | 消耗電流 | 負載電流 | 殘留電壓 | 反應頻率 | 重量 |
Type | Power Supply | Sensing Distance | Differential Travel | Output | Current Consumption | Load Current | Voltage Drop | Response Frequency | Wieght |
LRD-300N | 10-30V DC | 3M | ±15% | NPN NO/NC | ﹤30mA | 250mA Max. | 1V Max. | 1.5ms Max. | 100g |
LRD-300P | 10-30V DC | 3M | ±15% | PNP NO/NC | ﹤30mA | 250mA Max. | 1V Max. | 1.5ms Max. |
對照型:
型號 | 工作電壓 | 感應距離 | 應差距離 | 輸出方式 | 消耗電流 | 負載電流 | 殘留電壓 | 反應頻率 | 重量 |
Type | Power Supply | Sensing Distance | Differential Travel | Output | Current Consumption | Load Current | Voltage Drop | Response Frequency | Wieght |
LTD-1000N | 10-30V DC | 10 cm | ±15% | NPN NO/NC | ﹤30mA | 250mA Max. | 1V Max. | 1.5ms Max. | Approx:165g |
LTD-1000P | 10-30V DC | 10 cm | ±15% | PNP NO/NC | ﹤30mA | 250mA Max. | 1V Max. | 1.5ms Max. | |
LTD-2000N | 10-30V DC | 20 cm | ±15% | NPN NO/NC | ﹤30mA | 250mA Max. | 1V Max. | 1.5ms Max. | |
LTD-2000P | 10-30V DC | 20 cm | ±15% | PNP NO/NC | ﹤30mA | 250mA Max. | 1V Max. | 1.5ms Max. |
